Trailer Over / Under Conversion Lift Kit, 3" - 4" Lift for 5.25K Round Tube Axle, 3" Diameter
SKU: K71-385-00
|
Reference Number: 071301
Brand: Dexter
CA$ 66.65
Business Customers can login to:
- See account pricing and available inventory
- Manage account invoices
Dexter Spring Seat Over/Under Conversion Kit For 3in Round Tube Axles
This kit will allow you to move the spring position from the bottom of the axle to the top or from the top to the bottom. This kit does not require any cutting or welding to install.
This kit will allow you to move the spring position from the bottom of the axle to the top or from the top to the bottom. This kit does not require any cutting or welding to install.

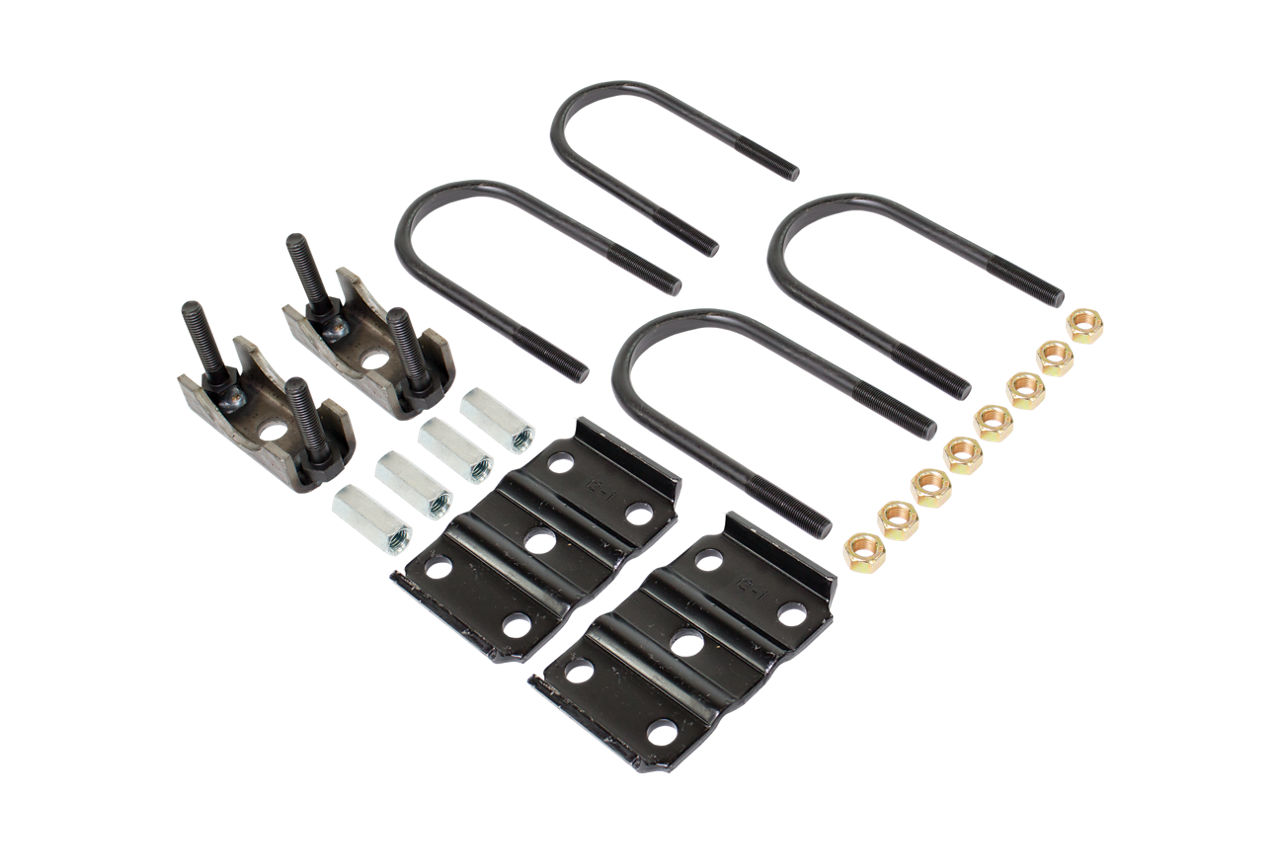

The kit includes:
2 Ubolt plates
2 3" Spring seats with welded studs
4 Adjusting nuts
4 Round ubolts
8 Nuts
Installation instructions
This kit has a maximum capacity of 7,000lbs and can be used with 1-3/4" or 2" wide spring.
2 Ubolt plates
2 3" Spring seats with welded studs
4 Adjusting nuts
4 Round ubolts
8 Nuts
Installation instructions
This kit has a maximum capacity of 7,000lbs and can be used with 1-3/4" or 2" wide spring.
| Dx Part No | Quantity | Description | |
| 003-070-00 | 2 | Spring Seat Weldment 3.00 OD | |
| 011-017-01 | 4 | U-Bolt | |
| 012-001-02 | 2 | Tie Plate | |
| 006-094-00 | 4 | Nut Coupling-1/2-13 Gr 2 | |
| 006-129-01 | 8 | Nut, Hex |
Alternate Item Numbers
9100191, 34-K71-385-00
Details
| Axle Suspension Type | Leaf Spring Suspension |
|---|---|
| Leaf Spring Type | Double-Eye |
| Axle Spring Configuration | Overslung / Underslung |
| Leaf Spring Width | 1 3/4" |
| Suspension Capacity | 5.2K |
| Axle Tube Size | 3" |
| Axle Tube Shape | Round |
| Kit Includes | (4) U-Bolts (2) Tie Plates (2) Seats (4) Spacers (8)Nuts |
Shipping Info
| Package Weight | 8.31 Lbs |
|---|
