Dexko Global

Axle Hub Component Quick Reference

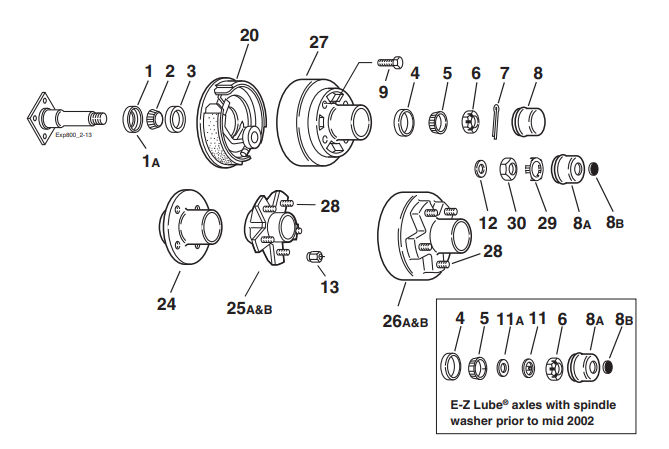

2,200lb Axle Hub Components

Hub Components
Ref
1 010-009-00 Grease Seal (1.5" ID)
NS 12192TB Grease Seal (1.25" ID)
2, 5 031-031-02 L44649 Inner/Outer Cone (1 1/16")
NS 031-031-03 L44643 Inner/Outer Cone (1")
3, 4 031-031-01 L44610 Inner/Outer Cup
6 006-176-00 Spindle Nut
NS   165686 Spindle Nut
7 019-002-00 019-002-00 Spindle Nut
8 021-003-00 021-003-00 Grease Cap
8A 021-041-01 021-041-01 EZ-Lube Grease Cap
8B 085-001-00 085-001-00 Rubber Plug
11 005-101-00   Tang Washer
11A 005-151-00 Spindle Washer
12 005-023-00 Spindle Washer
NS SW1000 Spindle Washer
29 006-191-00 Jam Nut
30 006-190-00 Nut Retainer
Hubs
Ref
Bolt Pattern
NS 008-091-05 TPP-765-0012 4 on 4"
25A 008-259-05 TPP-765-0071 5 on 4.5" Small Wheel
25B 008-258-05 TPP-765-0001 5 on 4.5" Large Wheel
Studs & Nuts
Ref
28 TPP-770-3202 1/2"-20 x 1.625"
28 007-246-00 1/2"-20 x 1.95"
28 TPP-770-0415 1/2"-20 x 2.00"
13 006-080-00 006-080-00
1/2"-20 60d
Wheel Nut
Hub Drums
Ref
Bolt Pattern
NS 008-173-16 4 on 4" Electric
NS 008-276-05 4 on 4" Hydraulic
26A 008-257-05 TPP-765-0029 5 on 4.5" Electric
26B 008-271-07 5 on 4.5" Hydraulic
Prepackaged Sets (Dry/Ungreased)
Ref
NS 008-091-05BT8 TPP-765-4012 4 on 4" Grease (1")
NS TPP-765-4012 4 on 4" EZ-Lube (1")
NS 008-091-05UC1 TPP-765-3012
4 on 4" Grease
(1 1/16")
NS TPP-765-3012
4 on 4" EZ-Lube
(1 1/16")
25A TPP-765-4071 5 on 4.5" Small Wheel, Grease (1")
25A TPP-765-4071 5 on 4.5" Small Wheel, EZ-Lube (1")
25A
 008-259-05UC1 TPP-765-3071
5 on 4.5"
Small Wheel, Grease (1 1/6")
25A 008-259-05UC1-EZ TPP-765-3071
5 on 4.5"
Small Wheel, EZ-Lube (1 1/6")
25B TPP-765-4001 5 on 4.5" Large Wheel, Grease (1")
25B TPP-765-4001 5 on 4.5" Large Wheel, EZ-Lube (1")
25B 008-258-05UC1 TPP-765-3001
5 on 4.5"
Large Wheel, Grease (1 1/6")
25B 008-258-05UC1-EZ TPP-765-3001
5 on 4.5"
Large Wheel, EZ-Lube (1 1/6")
NS 008-173-16UC3 4 on 4" Electric Brake, Grease
NS 008-173-16UC-EZ 4 on 4" Electric Brake, EZ-Lube
NS 008-276-05UC3 4 on 4" Hydraulic Brake, Grease
NS 008-276-05UC3-EZ 4 on 4" Hydraulic Brake, EZ-Lube
26A 008-257-05UC3 TPP-765-3029-BK 5 on 4.5" Electric Brake, Grease
26A 008-257-05UC3-EZ TPP-765-3029-BK 5 on 4.5" Electric Brake, EZ-Lube
26B 008-271-07UC3 5 on 4.5" Hydraulic Brake, Grease
26B 008-271-07UC3-EZ 5 on 4.5" Hydraulic Brake, EZ-Lube
Prepackaged Sets (Wet/Pre-Greased)
Ref Bolt Pattern
NS TPP-765-6012 4 on 4" (1")
NS TPP-765-5012
4 on 4" (1 1/16")
25A TPP-765-6071
5 on 4.5"
Small Wheel (1")
25A TPP-765-5071
5 on 4.5"
Small Wheel (1 1/16")
25B TPP-765-6001 5 on 4.5" Large Wheel (1")
25B TPP-765-5001
5 on 4.5"
Large Wheel (1 1/16")
Retail Packaged Components
Ref
8 TPP-770-0024 Grease Cap Pack
8A/8B TPP-770-0025 EZ-Lube Grease Cap Pack
8B TPP-770-0053 EZ-Lube Replacement Plug Pack
1
 TPP-770-0060 Seal Pack (1.25" ID)
1 TPP-770-0083 Seal Pack (1.5" ID)
13 TPP-770-0045 Wheel Nut Pack
NS TPP-780-1001 Complete Hub Component Kit (1")
NS TPP-780-1002 Complete Hub Component Kit (1 1/16")
NS TPP-780-0371 Bearing Kit (1")
NS TPP-780-0381 Bearing Kit (1 1/16")

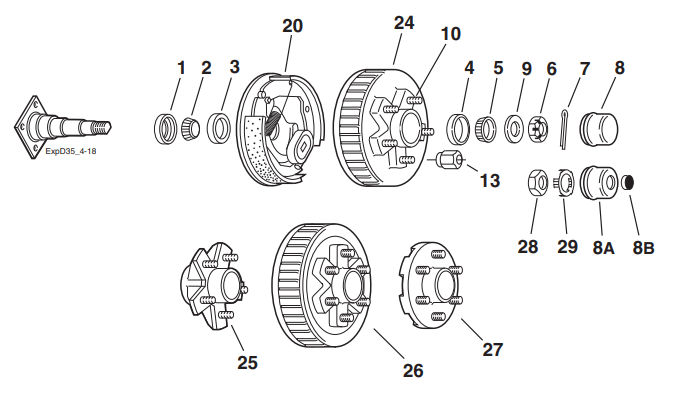

3,500lb Axle Hub Components

Hub Components
Ref
1 010-019-00 010-019-00 Grease Seal
2 031-033-02 031-033-02 L68149 Inner Cone
3 031-033-01 031-033-01 L68111 Inner Cup
4 031-031-01 031-031-01 L44610 Outer Cup
5 031-031-02 031-031-02 L44649 Outer Cone
6 006-176-00 Spindle Nut
NS   165686 Spindle Nut
7 019-002-00 019-002-00 Cotter Pin
8 021-003-00 021-003-00 Grease Cap
8A 021-041-01 021-041-01 EZ-Lube Grease Cap
8B 085-001-00 085-001-00 Rubber Plug
9 005-023-00   Spindle Washer
NS   SW1000 Spindle Washer
28 006-191-00 Jam Nut
29 006-190-00 Nut Retainer
Hubs
Ref
Bolt Pattern
25 008-248-05 TPP-765-0073 5 on 4.5"
25 008-256-07 TPP-765-0077 5 on 5"
25 008-256-05 TPP-765-0079 5 on 5.5"
25 008-248-10 TPP-765-0075 5 on 4.75"
27 008-251-05 TPP-765-0081 6 on 5.5"
Studs & Nuts
Ref
10 007-122-00 TPP-770-0415 1/2"-20
13 006-080-00 006-080-00 1/2"-20 60d Cone Nut
Hub Drums
Ref
Bolt Pattern
24 008-247-05 TPP-765-0030 5 on 4.5"
24 008-249-07 TPP-765-0034 5 on 5"
24 008-249-05 TPP-765-0036 5 on 5.5"
24 008-247-12 TPP-765-0032 5 on 4.75"
26 008-250-05 TPP-765-0038 6 on 5.5"
Prepackaged Sets (Dry/Ungreased)
Ref
25 008-248-05UC1 TPP-765-3073 5 on 4.5" Grease
25 008-248-05UC1-EZ TPP-765-3073 5 on 4.5" EZ-Lube
25 008-256-07UC1 TPP-765-3077 5 on 5" Grease
25 008-256-07UC1-EZ TPP-765-3077 5 on 5" EZ-Lube
25 008-256-05UC1 TPP-765-3079-BK 5 on 5.5" Grease
25 008-256-05UC1-EZ TPP-765-3079-BK 5 on 5.5" EZ-Lube
25 008-248-10UC1 TPP-765-3075-BK 5 on 4.75" Grease
25 008-248-10UC1-EZ TPP-765-3075-BK 5 on 4.75" EZ-Lube
27 008-251-05UC1 TPP-765-3081 6 on 5.5" Grease
27 008-251-05UC1-EZ TPP-765-3081 6 on 5.5" EZ-Lube
24 008-247-05UC3 TPP-765-3030 5 on 4.5" Grease
24 008-247-05UC3-EZ TPP-765-3030 5 on 4.5" EZ-Lube
24 008-249-07UC3 TPP-765-3034 5 on 5" Grease
24 008-249-07UC3-EZ TPP-765-3034 5 on 5" EZ-Lube
24 008-249-05UC3 TPP-765-3036-BK 5 on 5.5" Grease
24 008-249-05UC3-EZ TPP-765-3036-BK 5 on 5.5" EZ-Lube
24 008-247-12UC3 TPP-765-3032-BK 5 on 4.75" Grease
24 008-247-12UC3-EZ TPP-765-3032-BK 5 on 4.75" EZ-Lube
26 008-250-05UC3 TPP-765-3038 6 on 5.5" Grease
26 008-250-05UC3-EZ TPP-765-3038 6 on 5.5" EZ-Lube
Prepackaged Sets (Wet/Pre-Greased)
Ref Bolt Pattern
25 K08-248-1G TPP-765-5073 5 on 4.5"
25   TPP-765-5077 5 on 5"
27   TPP-765-5081 6 on 5.5"
24 K08-247-1G TPP-765-5030 5 on 4.5"
24   TPP-765-5034 5 on 5"
26   TPP-765-5038 6 on 5.5"
Retail Packaged Components
Ref
8 TPP-770-0024 Grease Cap Pack
8A/8B TPP-770-0025 EZ-Lube Grease Cap Pack
8B TPP-770-0053 EZ-Lube Replacement Plug Pack
1 TPP-770-0085 Double Lip Seal Pack
13 TPP-770-0045 Wheel Nut Pack
NS TPP-780-1003 Complete Hub Component Kit
NS TPP-780-0591 Bearing Kit

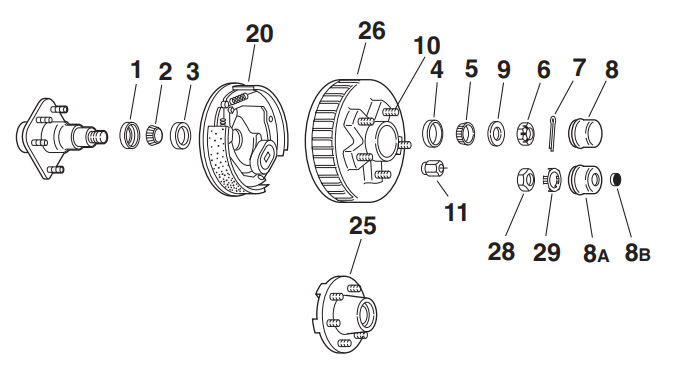

6,000lb Axle Hub Components

Hub Components
Ref
1 010-036-00 010-036-00 Grease Seal 2.25" ID
NS 010-010-00 010-010-00 Grease Seal 2.125" ID
2 031-030-02 031-030-02 25580 Inner Cone
3 031-030-01 031-030-01 25520 Inner Cup
4 031-029-01 031-029-01 15245 Outer Cup (6,000lb)
5 031-029-02 031-029-02 15123 Outer Cone (6,000lb)
NS
 031-032-01 031-032-01 LM67010 Outer Cup (5,200lb)
NS 031-032-02 031-032-02 LM67048 Outer Cone (5,200lb)
6 006-176-00 Spindle Nut
NS   165686 Spindle Nut
7 019-002-00 019-002-00 Cotter Pin
8 021-001-00 021-001-00 Grease Cap
8A 021-042-01 021-042-01 EZ-Lube Grease Cap
8B 085-001-00 085-001-00 Rubber Plug
9 005-023-00   Spindle Washer
NS   SW1000 Spindle Washer
28 006-191-00 Jam Nut
29 006-190-00 Nut Retainer
Hubs
Ref
Bolt Pattern
25 008-201-09 TPP-765-0135 6 on 5.5"
Studs & Nuts
Ref
10 007-122-00 TPP-770-0415 1/2"-20 x 2.0"
10
 TPP-770-3207 1/2"-20 x 2.5"
10 007-262-00 1/2"-20 x 2.7"
11 006-080-00 006-080-00 1/2"-20 60d Cone Nut
Hub Drums
Ref
Bolt Pattern
26 008-213-09 TPP-765-0133 6 on 5.5"
Prepackaged Sets (Dry/Ungreased)
Ref
25 008-201-09UC1 TPP-765-3135 6 on 5.5" Grease
25 008-201-09UC1-EZ TPP-765-3135 6 on 5.5" EZ-Lube
26 008-213-09UC3 TPP-765-3133 6 on 5.5" Grease
26 008-213-09UC3-EZ TPP-765-3133 6 on 5.5" EZ-Lube
Prepackaged Sets (Wet/Pre-Greased)
Ref Bolt Pattern
25 TPP-765-5135 6 on 5.5"
26 K08-201-2G  TPP-765-5133 6 on 5.5"
Retail Packaged Components
Ref
1 TPP-770-0073
Double Lip Seal Pack
(2.25" ID)
1 TPP-770-0045
Double Lip Seal Pack
(2.125" ID)
8 TPP-770-0027 Grease Cap Pack
8A TPP-770-0016 EZ-Lube Grease Cap Pack
8B TPP-770-0053 EZ-Lube Replacement Plug Pack
11 TPP-770-0045 Wheel Nut Pack
NS TPP-780-1004 Complete Hub Component Kit
NS TPP-780-0701 Bearing Kit (5,200lb)
NS TPP-780-0702 Bearing Kit (6,000lb 2.125" Seal)
NS TPP-780-0703 Bearing Kit (6,000lb 2.25" Seal)

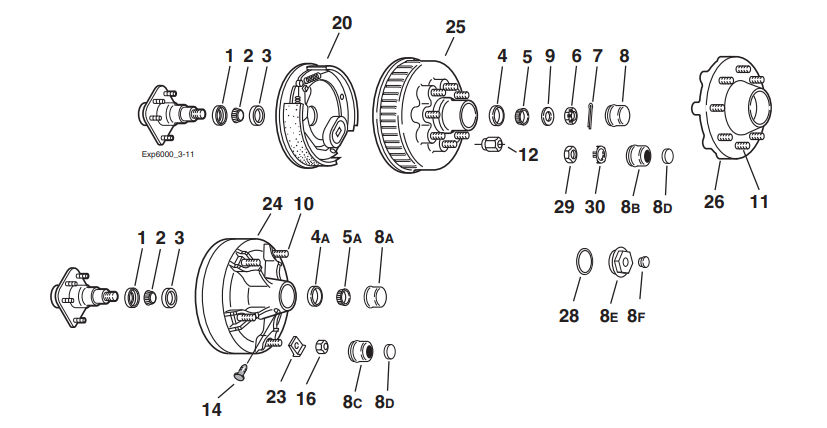

7,000lb Axle Hub Components

Hub Components
Ref
1 010-036-00 010-036-00 Grease Seal 2.25" ID
1 010-010-00 010-010-00 Grease Seal 2.125" ID
1 010-063-00 010-063-00 Oil Seal 2.25" ID
2 031-030-02 031-030-02 25580 Inner Cone
3 031-030-01 031-030-01 25520 Inner Cup
4 031-017-01 031-017-01 14276 Outer Cup (Standard)
5 031-017-02 031-017-02 14125A Outer Cone (Standard)
4A 031-029-01 031-029-01 15245 Outer Cup (Demountable)
5A 031-029-02 031-029-02 15123 Outer Cone (Demountable)
6 006-176-00 Spindle Nut
NS   165686 Spindle Nut
7 019-002-00 019-002-00 Cotter Pin
8 021-039-00 021-039-00 Grease Cap (Standard)
8A 021-001-00 021-001-00 Grease Cap (Demountable)
8B 021-043-01 021-043-01 EZ-Lube Grease Cap (Standard)
8D 085-001-00 085-001-00 Rubber Plug
8E 021-035-00 021-035-00 Oil Cap
8F 046-032-00 046-032-00 Oil Cap Plug
14 046-052-00 046-052-00 Oil Filler Plug
28 010-045-00 010-045-00 Oil Cap O-Ring
9 005-057-00   Spindle Washer
NS   SW1000 Spindle Washer
16 006-005-00 006-005-00 9/16"-18 Nut
23 015-002-00 015-002-00 Rim Clamp
28 006-191-00 Jam Nut
29 006-190-00 Nut Retainer
Hubs
Ref
Bolt Pattern
26 008-231-09 TPP-765-0083 8 on 6.5" 1/2" Grease
26 008-231-18 8 on 6.5" 9/16" Grease
26 008-231-20 8 on 6.5" 5/8" Grease
26 008-231-16 8 on 6.5" 1/2" Oil
Studs
Ref
10 025-011-00 TPP-770-3208 9/16"-18 Demountable
11 007-122-00 TPP-770-0415 1/2"-20 x 2.0"
11 TPP-770-3207 1/2"-20 x 2.5"
11 007-262-00 1/2"-20 x 2.7"
NS 007-132-00 9/16"-18 x 2.3"
NS TPP-770-0199 9/16"-18 x 3"
NS 007-232-00 TPP-770-3202 5/8"-18 x 2.75"

Wheel Nuts
Ref
12 006-080-00 006-080-00 1/2"-20 60d Wheel Nut
NS 006-053-00 006-053-00 9/16"-18 60d Wheel Nut
NS 006-109-00 006-109-00 5/8"-18 90d Wheel Nut
Hub Drums
Ref
Bolt Pattern
24 008-174-05 TPP-765-0047 Demountable (Grease)
25 008-219-04 TPP-765-0045
8 on 6.5"
1/2" Grease
25 008-219-13 TPP-765-0050
8 on 6.5"
9/16" Grease
25 008-219-18 TPP-765-0113
8 on 6.5"
5/8" Grease
25 008-219-09 TPP-765-0041
8 on 6.5"
1/2" Oil
25 008-219-20 TPP-765-0166
8 on 6.5"
9/16" Oil
25 008-219-26
8 on 6.5"
5/8" Oil
Prepackaged Sets (Dry/Ungreased)
Ref
26 008-231-09UC1 TPP-765-3083-BK 8 on 6.5" 1/2" Grease
26 008-231-09UC1-EZ TPP-765-3083-BK
8 on 6.5" 1/2"
EZ-Lube
26 008-231-18UC1 8 on 6.5" 9/16" Grease
26 008-231-18UC1-EZ
8 on 6.5" 9/16"
EZ-Lube
26 008-231-20UC1 8 on 6.5" 5/8" Grease
26 008-231-20UC1-EZ
8 on 6.5" 5/8"
EZ-Lube
26 008-231-16UC1 8 on 6.5" 1/2" Oil
24 008-174-05UC3 Demountable Grease
25 008-219-04UC3 TPP-765-3045 8 on 6.5" 1/2" Grease
25 008-219-04UC3-EZ TPP-765-3045
8 on 6.5" 1/2"
EZ-Lube
25 008-219-13UC3 TPP-765-3050 8 on 6.5" 9/16" Grease
25 008-219-13UC3-EZ TPP-765-3050
8 on 6.5" 9/16"
EZ-Lube
25 008-219-18UC3 TPP-765-3113 8 on 6.5" 5/8" Grease
25 008-219-18UC3-EZ TPP-765-3113
8 on 6.5" 5/8"
EZ-Lube
25 008-219-09UC3 8 on 6.5" 1/2" Oil
25 008-219-20UC3 8 on 6.5" 9/16" Oil
25 008-219-26UC3 8 on 6.5" 5/8" Oil
Prepackaged Sets (Wet/Pre-Greased)
Ref Bolt Pattern
25 K08-219-1G TPP-765-5045 8 on 6.5" 1/2"
25 K08-219-2G TPP-765-5050 8 on 6.5" 9/16"
25   TPP-765-5113 8 on 6.5" 5/8"
Retail Packaged Components
Ref
1 TPP-770-0073
Double Lip Seal Pack
(2.25" ID)
1 TPP-770-0045
Double Lip Seal Pack
(2.125" ID)
8 TPP-770-0020 Grease Cap Pack
8A TPP-770-0018 EZ-Lube Grease Cap Pack
8B TPP-770-0053 EZ-Lube Replacement Plug Pack
11 TPP-770-0045 Wheel Nut Pack 1/2"-20
NS TPP-770-0036 Wheel Nut Pack 9/16"-18
NS TPP-780-1005 Complete Hub Component Kit 1/2"
NS TPP-780-1006 Complete Hub Component Kit 9/16"
NS TPP-780-0711 Bearing Kit (2.125" Seal)
NS TPP-780-0712 Bearing Kit (2.25" Seal)

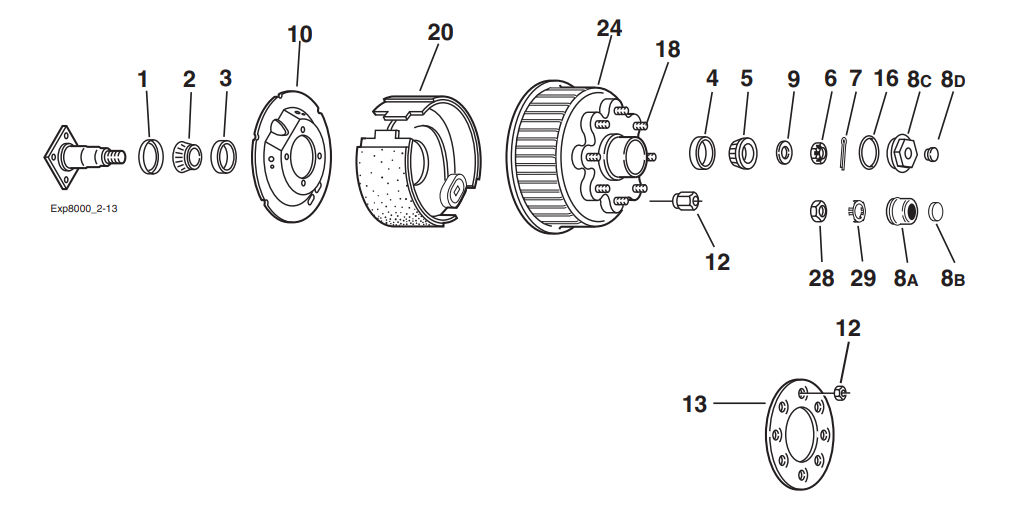

8,000lb Axle Hub Components - Dexter Style

Hub Components
Ref
1 010-036-00 010-036-00 Grease Seal
1 010-063-00 010-063-00 Oil Seal
2 031-030-02 031-030-02 25580 Inner Cone
3 031-030-01 031-030-01 25520 Inner Cup
4 031-028-01 031-028-01 02420 Outer Cup
5 031-028-02 031-028-02 02475 Outer Cone
6 006-176-00 006-176-00 Spindle Nut
7 019-002-00 019-002-00 Cotter Pin
NS 021-039-00 021-039-00 Grease Cap
8A 021-043-01 021-043-01 EZ-Lube Grease Cap
8B 085-001-00 085-001-00 Rubber Plug
8C 021-035-00 021-035-00 Oil Cap
8D 046-032-00 046-032-00 Oil Cap Plug
16 010-045-00 010-045-00 Oil Cap O-Ring
NS 046-052-00 046-052-00 Oil Fill Plug
9 005-057-00 005-057-00 Spindle Washer
28 006-191-00 006-191-00 Jam Nut
29 006-190-00 006-190-00 Nut Retainer
Hubs
Ref
Bolt Pattern
NS 008-287-11 8 on 6.5" 9/16" Grease
NS 008-287-07 8 on 6.5" 5/8" Grease
NS 008-287-14 8 on 6.5" 9/16" Oil
NS 008-287-17 8 on 6.5" 5/8" Oil
Studs
Ref
18 007-132-00 9/16"-18 x 2.3"
18 007-232-00 5/8"-18 x 2.75"

Wheel Nuts
Ref
12 006-053-00 006-053-00 9/16"-18 60d Wheel Nut
12 006-109-00 006-109-00 5/8"-18 90d Wheel Nut
NS 006-058-00 006-058-00 5/8"-18 Flange Nut
Hub Drums
Ref
Bolt Pattern**
NS 008-393-04 8 on 6.5" 9/16" Grease (Narrow)
NS 008-393-06 8 on 6.5" 5/8" Grease (Narrow)
NS 008-393-03 8 on 6.5" 9/16" Oil (Narrow)
NS 008-393-05 8 on 6.5" 5/8" Oil (Narrow)
24 008-285-11 TPP-765-0155 8 on 6.5" 9/16" Grease (Full)
24 008-285-08 TPP-765-0176 8 on 6.5" 5/8" Grease (Full)
24 008-285-09 TPP-765-0053 8 on 6.5" 9/16" Oil (Full)
24 008-285-10 TPP-765-0051 8 on 6.5" 5/8" Oil (Full)
**NOTE: Narrow axles use a 12 1/4" x 2 1/2" brake and Full use a
12 1/4" x 3 3/8" brake.
Prepackaged Sets (Dry/Ungreased)
Ref
NS 008-393-04UC3 8 on 6.5" 9/16" Grease (Narrow)
NS 008-393-04UC3-EZ 8 on 6.5" 9/16" EZ-Lube (Narrow)
NS 008-393-06UC3A 8 on 6.5" 5/8" Grease, Flange Nuts (Narrow)
NS 008-393-06UC3B 8 on 6.5" 5/8" Grease, Cone Nuts (Narrow)
NS 008-393-06UC3EZA 8 on 6.5" 5/8" EZ-Lube, Flange Nuts (Narrow)
NS 008-393-06UC3EZB 8 on 6.5" 5/8" EZ-Lube, Cone Nuts (Narrow)
NS 008-393-03UC3 8 on 6.5" 9/16" Oil (Narrow)
NS 008-393-05UC3A 8 on 6.5" 5/8" Oil, Flange Nuts (Narrow)
NS 008-393-05UC3B 8 on 6.5" 5/8" Oil, Cone Nuts (Narrow)
24 008-285-11UC3 8 on 6.5" 9/16" Grease (Full)
24 008-285-11UC3-EZ 8 on 6.5" 9/16" EZ-Lube (Full)
24 008-285-08UC3-A 8 on 6.5" 5/8" Grease, Flange Nuts (Full)
24 008-285-08UC3-B 8 on 6.5" 5/8" Grease, Cone Nuts (Full)
24 008-285-08UC3-EZ 8 on 6.5" 5/8" EZ-Lube, Flange Nuts (Full)
24 008-285-09UC3 8 on 6.5" 9/16" Oil (Full)
24 008-285-10UC3-A 8 on 6.5" 5/8" Oil, Flange Nuts (Full)
24 008-285-10UC3-B 8 on 6.5" 5/8" Oil, Cone Nuts (Full)
Retail Packaged Components
Ref Bolt Pattern
8 TPP-770-0020 Grease Cap Pack
8A   TPP-770-0018 EZ-Lube Grease Cap Pack
8B   TPP-770-0053 EZ-Lube Replacement Plug Pack
NS TPP-770-0036 Wheel Nut Pack 9/16"-18
8C K71-038-00 Oil Cap Pack

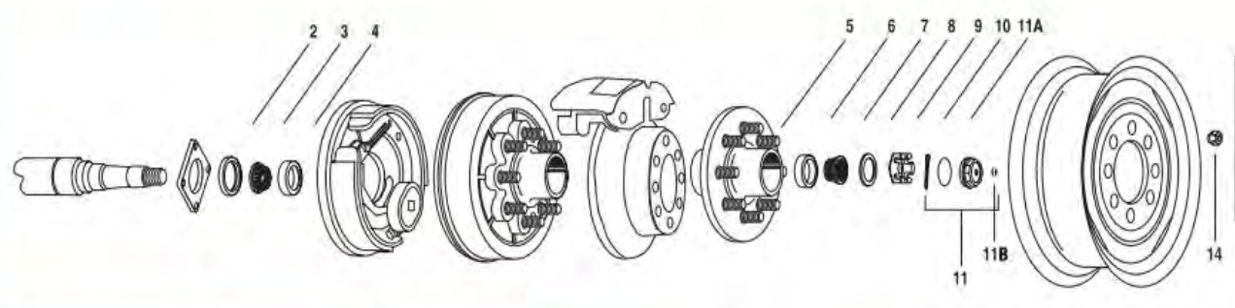

8,000lb Axle Hub Components - Rockwell Style

Hub Components
Ref
2 010-063-00 Oil Seal
NS 010-036-00 Grease Seal
3 031-030-02 25580 Inner Cone
4 031-030-01 25520 Inner Cup
6 031-028-01 02420 Outer Cup
7 031-028-02 02475 Outer Cone
8 005-223-00 Spindle Washer
9 006-176-00 Spindle Nut
10 019-002-00 Cotter Pin
11 021-035-00 Oil Cap
NS 021-039-00 Grease Cap
NS 021-043-01 EZ-Lube Grease Cap
NS 085-001-00 Rubber Plug
Hub Drums
Ref
Bolt Pattern
NS TPP-765-0246 8 on 6.5" 9/16" Oil
NS TPP-765-0522 8 on 6.5" 5/8" Oil
NS TPP-765-0312 8 on 6.5" 9/16" Grease
NS TPP-765-0293 8 on 6.5" 5/8" Grease
Studs
Ref
NS TPP-770-3202 5/8"-18

Wheel Nuts
Ref
14 006-053-00 9/16"-18 60d Wheel Nut
14 006-109-00 5/8"-18 90d Wheel Nut
NS 006-058-00 5/8"-18 1pc Flange Nut

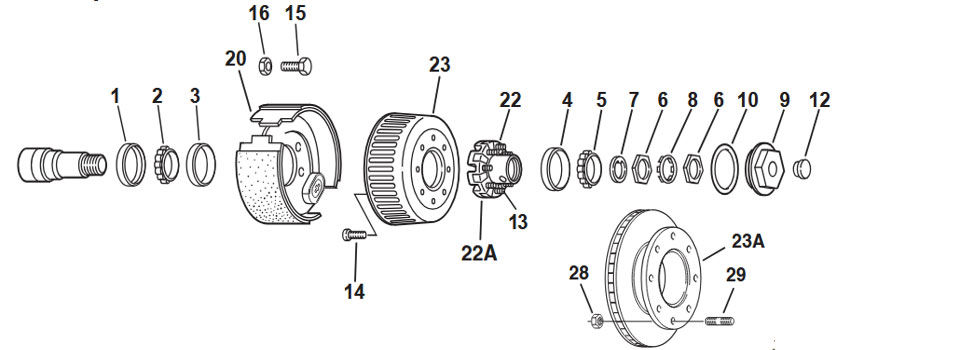

10,000lb General Duty Axle Hub Components - Dexter Style

Hub Components
Ref
1 010-051-02 010-051-02 Oil Seal
2 031-019-02 010-019-02 387A Inner Cone
3 031-019-01 031-019-01 382A Inner Cup
4 031-030-01 031-030-01 25520 Outer Cup
5 031-030-02 031-030-02 25580 Outer Cone
6 006-096-00 006-096-00 Spindle Nut
7 005-070-00 005-070-00 Spindle Washer
8 005-071-00 005-071-00 Tang Washer
9 021-088-00 021-088-00 Oil Cap
10 010-163-00 010-163-00 O-Ring
12 046-032-00 046-032-00 Oil Cap Plug
14 007-292-00 007-292-00 Drum Mounting Screw
29 025-014-00 Rotor Mounting Stud
28 006-046-00 Rotor Mounting Nut
Hubs (Threaded Cap)
Ref
Bolt Pattern
22 008-430-03 TPP-765-0242
8 on 6.5" 5/8"
(New Style)
 22 008-288-03
8 on 6.5" 5/8"
(Old Style)
 22 008-288-07
8 on 6.5" 5/8"
(Old Style, Disc Brake)
Hubs (Bolt-On Cap)
Ref Bolt Pattern
NS 008-430-13 8 on 6.5" 5/8" (New Style)
NS 008-288-13 8 on 6.5" 5/8" (Old Style)
NS 008-288-17
8 on 6.5" 5/8"
(Old Style, Disc Brake)
Hub Drums (Threaded Cap)
Ref
Bolt Pattern
NS 008-435-05 TPP-765-0241 8 on 6.5" 5/8" 2 Piece (New Style)

Drums
Ref
23 009-123-01 TPP-765-0243 Standard (New Style)
23 009-123-01 ABS (New Style)
23 009-044-01 TPP-765-0007 Standard (Old Style)
23 009-044-03 ABS (Old Style)
Retail Packaged Components
Ref
NS K21-302-00 Threaded Oil Cap Kit
NS K21-259-00 Bolt-On Oil Cap Kit
NS K21-307-00 Bolt-On Grease cap Kit
Wheel Nuts
Ref
NS 033-052-01 Clamp Ring (Dual Wheel)
NS 006-109-00 5/8"-18 90d Wheel Nut
NS 006-058-00 5/8"-18 Flange Nut
NS 006-209-00 5/8"-18 2pc Swivel Flange Nut
Studs
Ref
13 007-115-00 5/8"-18 Stud

Rotors
Ref
23A
 070-006-01 Brake Rotor

10,000lb General Duty Axle Hub Components - Rockwell Style

Hub Components
Ref
1 010-257-00 Oil Seal
2 031-090-02 28580 Inner Cone
3 031-090-01 28521 Inner Cup
7 031-030-01 25520 Outer Cup
8 031-030-02 25580 Outer Cone
9 005-224-00 Spindle Washer
10 90623 Spindle Nut
11 CP-3 Cotter Pin
12 021-12011 Oil Cap
Hub Drums
Ref
Bolt Pattern
14 TPP-765-0152 8 on 6.5" 5/8" (4.88" Pilot)
14 TPP-765-0276 8 on 6.5" 5/8" (4.75" Pilot)
Studs
Ref
5 TPP-770-3202 5/8"-18

Wheel Nuts
Ref
NS 006-058-00 5/8"-18 1pc Flange Nut
6 006-209-00 5/8"-18 2pc Swivel Flange Nut

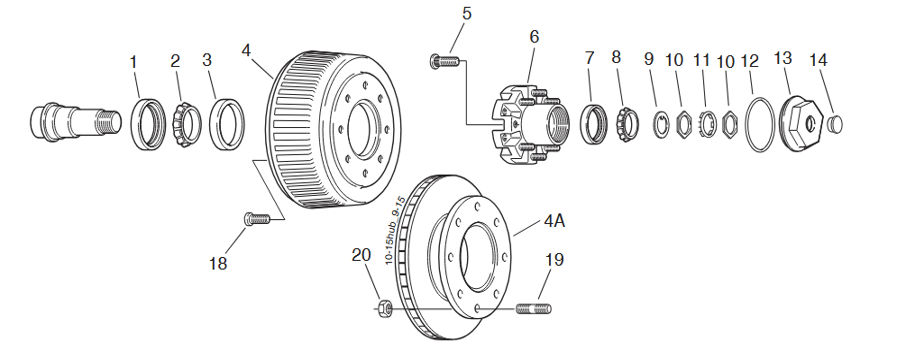

10,000lb Heavy Duty Axle Hub Components - Dexter Style

Hub Components
Ref
1 010-056-00 Oil Seal
2 031-022-02 3955 Inner Cone
3 031-022-01 394A Inner Cup
7 031-019-01 382A Outer Cup
8 031-019-02 387A Outer Cone
9 005-060-00 Spindle Washer
10 006-084-00 Spindle Nut
11 005-059-00 Tang Washer
12 010-050-00 O-Ring
13 021-036-00 Oil Cap
14 046-032-00 Oil Cap Plug
18 007-244-00 Drum Mounting Screw
19 025-014-00 Rotor Mounting Stud
20 006-046-00 Rotor Mounting Nut
Hubs (Threaded Cap)
Ref
Bolt Pattern
6 008-214-05 8 on 6.5" 5/8"
6 008-214-06 8 on 6.5" 5/8" (Disc Brake)
Hubs (Bolt-On Cap)
Ref Bolt Pattern
NS 008-214-25 8 on 6.5" 5/8"
NS 008-214-26 8 on 6.5" 5/8" (Disc Brake)

Studs
Ref
5 007-115-00 5/8-18 Stud
Drums
Ref
4 009-027-01 Standard
4 009-027-03 ABS

Rotors
Ref
4A 070-006-01 Brake Rotor
4A 070-006-02 Brake Rotors (ABS)
Retail Packaged Components
NS K21-301-00 Threaded Oil Cap Kit
NS K21-259-00 Bolt-On Oil Cap Kit
NS K21-307-00 Bolt-On Grease Cap Kit
Wheel Nuts
Ref
NS 033-052-01 Clamp Ring (Dual Wheel)
NS 006-109-00 5/8"-18 90d Wheel Nut
NS 006-058-00 5/8"-18 Flange Nut
NS 006-209-00 5/8"-18 2pc Swivel Flange Nut

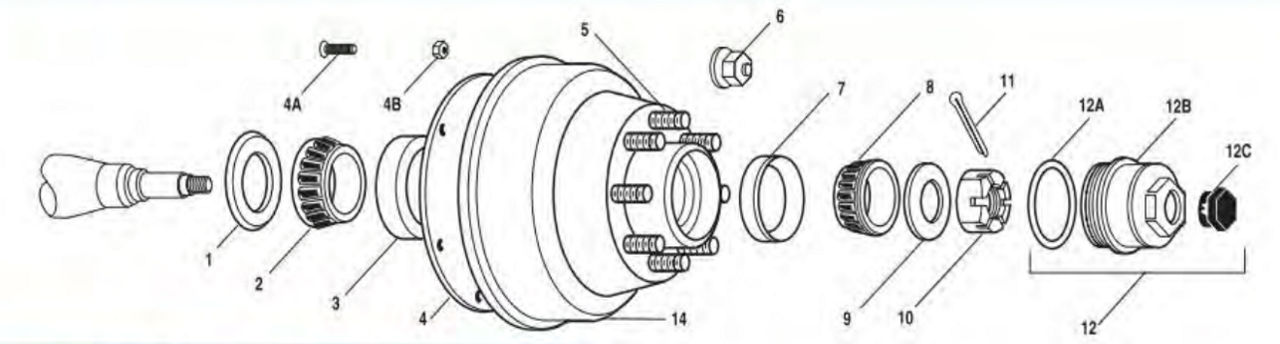

10,000lb Heavy Duty Axle Hub Components - Rockwell Style

Hub Components
Ref
1 010-056-00 Oil Seal
2 031-095-02 JM511946 Inner Cone
3 031-095-01 JM511910 Inner Cup
7 031-096-01 JM205110 Outer Cup
8 031-096-02 JM205149 Outer Cone
9 005-224-00 Spindle Washer
10 90623 Spindle Nut
11 CP-3 Cotter Pin
12 021-12011 Oil Cap
Hub Drums
Ref
Bolt Pattern
14 TPP-765-0529 8 on 6.5" 5/8" (4.88" Pilot)
14 TPP-765-0530 8 on 6.5" 5/8" (4.75" Pilot)
Studs
Ref
5 TPP-770-3202 5/8"-18

Wheel Nuts
Ref
NS 006-058-00 5/8"-18 1pc Flange Nut
6 006-209-00 5/8"-18 2pc Swivel Flange Nut

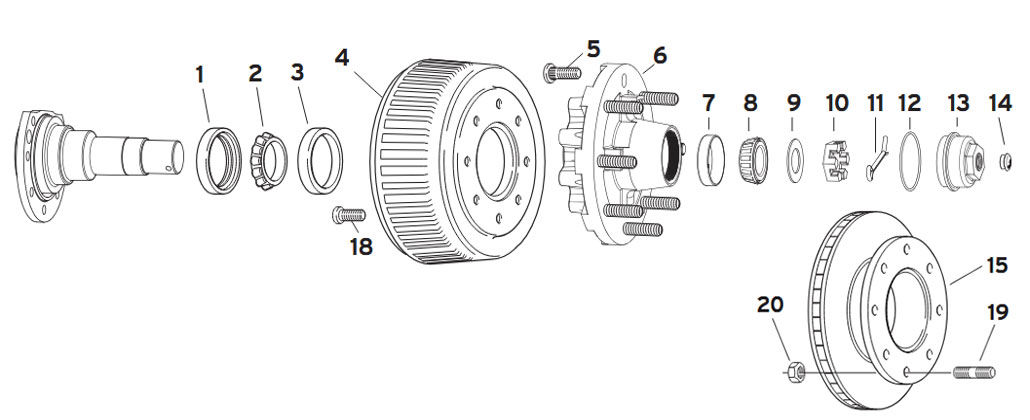

12,000lb Axle Hub Components - Dexter Style

Hub Components
Ref
1 010-056-00 Oil Seal
2 031-020-02 3984 Inner Cone
3 031-020-01 3920 Inner Cup
7 031-021-01 28622 Outer Cup
8 031-021-02 28682 Outer Cone
9 005-060-00 Spindle Washer
10 006-084-00 Spindle Nut
11 005-059-00 Tang Washer
12 010-050-00 O-Ring
13 021-036-00 Oil Cap
14 046-032-00 Oil Cap Plug
18 007-244-00 Drum Mounting Screw
18 007-245-00 Drum Mounting Screw (#14 Torsion)
19 025-014-00 Rotor Mounting Stud
20 006-046-00 Rotor Mounting Nut
21 007-292-00 Disc Mounting Screw (#14 Torsion)
Hubs (Threaded Cap)
Ref
Bolt Pattern
6 008-214-08 8 on 6.5" 5/8" High Profile
6 008-214-10 8 on 6.5" 5/8" High Profile (Disc Brake)
6 008-422-03 8 on 6.5" 5/8" High Profile (#14 Torsion)
6 008-422-04
8 on 6.5" 5/8" High Profile
(#14 Torsion Disc Brake)
Hubs (Bolt-On Cap)
Ref Bolt Pattern
NS 008-214-28 8 on 6.5" 5/8" High Profile
NS 008-214-30 8 on 6.5" 5/8" High Profile (Disc Brake)
NS 008-422-13 8 on 6.5" 5/8" High Profile (#14 Torsion)
NS 008-422-14
8 on 6.5" 5/8" High Profile
(#14 Torsion Disc Brake)

Wheel Nuts
Ref
NS 033-052-01 Clamp Ring (Dual Wheel)
NS 006-109-00 5/8"-18 90d Wheel Nut
NS 006-058-00 5/8"-18 90d Wheel Nut
NS 006-209-00 5/8"-18 2pc Swivel Flange Nut
Drums
Ref
4 009-028-01 TPP-765-0028 Standard
4 009-028-05 ABS

Rotors
Ref
4A 070-006-01 Brake Rotor
4A
Brake Rotor
(#14 Torsion)
4A 070-006-02
Brake Rotor
(ABS)

Studs
Ref
5 007-115-00 5/8-18 Stud

Retail Packaged Components
Ref
NS K21-301-00 Threaded Oil Cap Kit
NS K21-259-00 Bolt-On Oil Cap Kit
NS K21-307-00 Bolt-On Grease Cap Kit

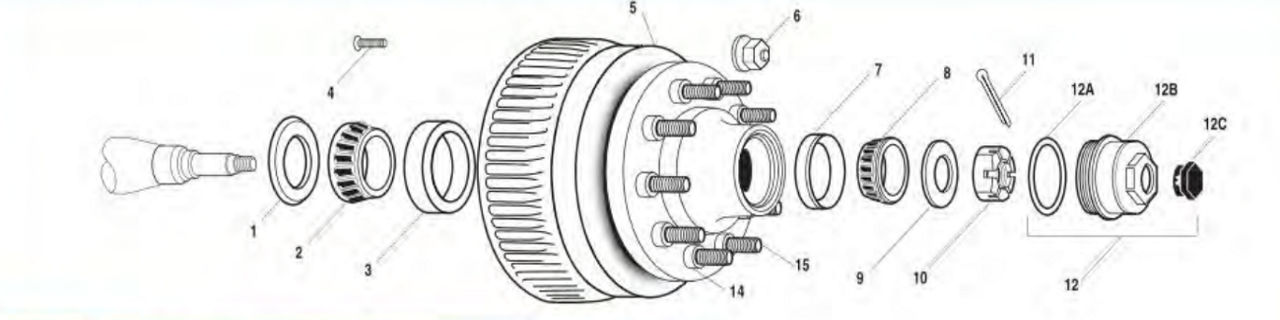

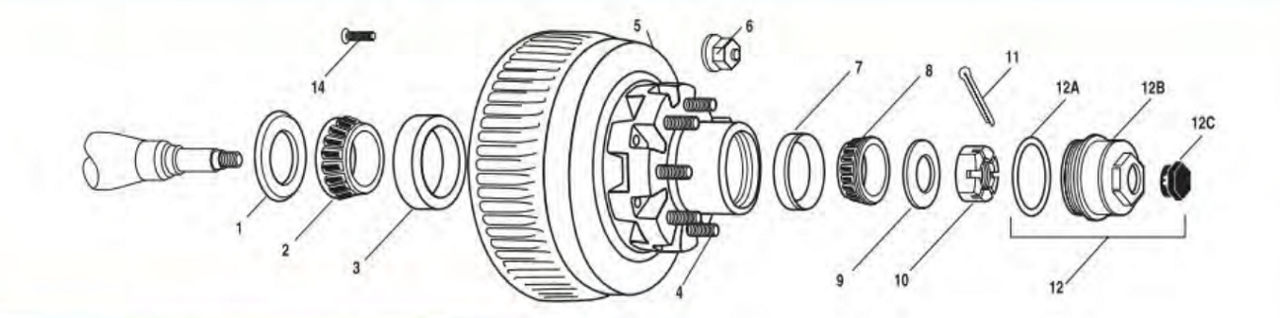

12,000lb Axle Hub Components - Rockwell Style

Hub Components
Ref
1 010-056-00 Oil Seal
2 031-097-02 39590 Inner Cone
3 031-097-01 39520 Inner Cup
7 031-096-01 JM205110 Outer Cup
8 031-096-02 JM205149 Outer Cone
9 47128 Spindle Washer
10 47127 Spindle Nut
11 CP-3 Cotter Pin
12 021-12011 Oil Cap
Hubs
Ref
Bolt Pattern
5 812865A-1 8 on 6.5" 5/8" (4.88" Pilot)
5 812865A-1475 8 on 6.5" 5/8" (4.75" Pilot)
Drums
Ref
5 TPP-765-0521 Standard

Studs
Ref
4 TPP-770-3202 5/8"-18

Wheel Nuts
Ref
NS 006-058-00 5/8"-18 1pc Flange Nut
6 006-209-00 5/8"-18 2pc Swivel Flange Nut

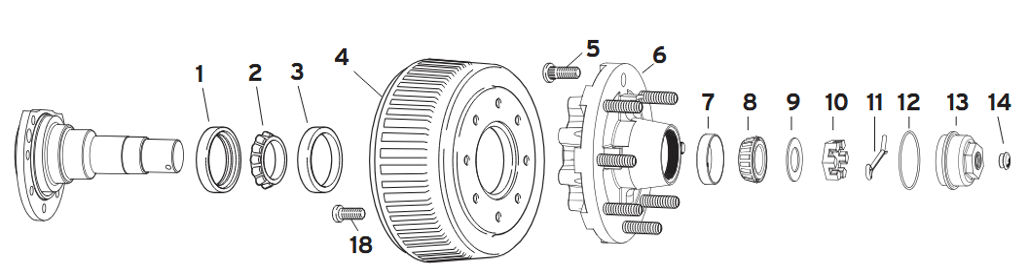

15,000lb Axle Hub Components - Dexter Style

Hub Components
Ref
1 010-056-00 Oil Seal
2 031-020-02 3984 Inner Cone
3 031-020-01 3920 Inner Cup
7 031-021-01 28622 Outer Cup
8 031-021-02 28682 Outer Cone
9 005-060-00 Spindle Washer
10 006-084-00 Spindle Nut
NS 005-059-00 Tang Washer
12 010-050-00 O-Ring
13 021-036-00 Oil Cap
14 046-032-00 Oil Cap Plug
18 007-244-00 Drum Mounting Screw
Hubs (Threaded Cap)
Ref
Bolt Pattern
6 008-401-05 8 on 275mm M22 (Short Stud)
6 008-401-06 8 on 275mm M22 (Long Stud)
Studs
Ref
5 007-194-00 M22 Short (Steel Wheel)
5 007-195-00 M22 Long (Aluminum Wheel)

Wheel Nuts
Ref
NS 006-118-00 M22 2pc Swivel Nut
Drums
Ref
4 009-028-01 TPP-765-0028 Standard
4 009-028-05 ABS

Retail Packaged Components
Ref
NS K21-301-00 Threaded Oil Cap

16,000lb Axle Hub Components - Dexter Style

Hub Components
Ref
1 010-056-01 Oil Seal
2 031-097-02 39590 Inner Cone
3 031-097-01 39520 Inner Cup
7 031-096-01 JM205110 Outer Cup
8 031-096-02 JM205149 Outer Cone
9 005-331-00 Spindle Washer
10 006-297-00 Spindle Nut
11 019-040-00 Cotter Pin
12 010-126-00 O-Ring
13 021-226-10 Oil Cap
14 021-234-10 Oil Cap Plug
18 007-244-00 Drum Mounting Screw
19 025-014-00 Rotor Mounting Stud
20 006-046-00 Rotor Mounting Nut
Hubs (Threaded Cap)
Ref Bolt Pattern
6 008-095-08 8 on 275mm M22 (Short Stud)
Studs
Ref
5 007-194-00 M22 Short (Steel Wheel)
5 007-195-00 M22 Long (Aluminum Wheel)

Wheel Nuts
Ref
NS 006-118-00 M22 2pc Swivel Nut

Drums
Ref
4 009-028-01 TPP-765-0028 Standard
4 009-028-05 ABS

Rotors
Ref
15 070-006-01 Brake Rotor

Retail Packaged Components
Ref
NS K21-301-00 Threaded Oil Cap

16,000lb Axle Hub Components - Rockwell Style

Hub Components
Ref
1 010-056-00 Oil Seal
2 031-097-02 39590 Inner Cone
3 031-097-01 39520 Inner Cup
7 031-096-01 JM205110 Outer Cup
8 031-096-02 JM205149 Outer Cone
9 47128 Spindle Washer
10 47127 Spindle Nut
11 CP-3 Cotter Pin
12 021-12011 Oil Cap
Hubs
Ref
Bolt Pattern
14 816810-1 8 on 275mm
Drums
Ref
5 TPP-765-0521 Standard

Studs
Ref
15 TPP-770-0226 M22 x 1.5"

Wheel Nuts
Ref
NS 006-118-00 M22 2pc Swivel Nut
