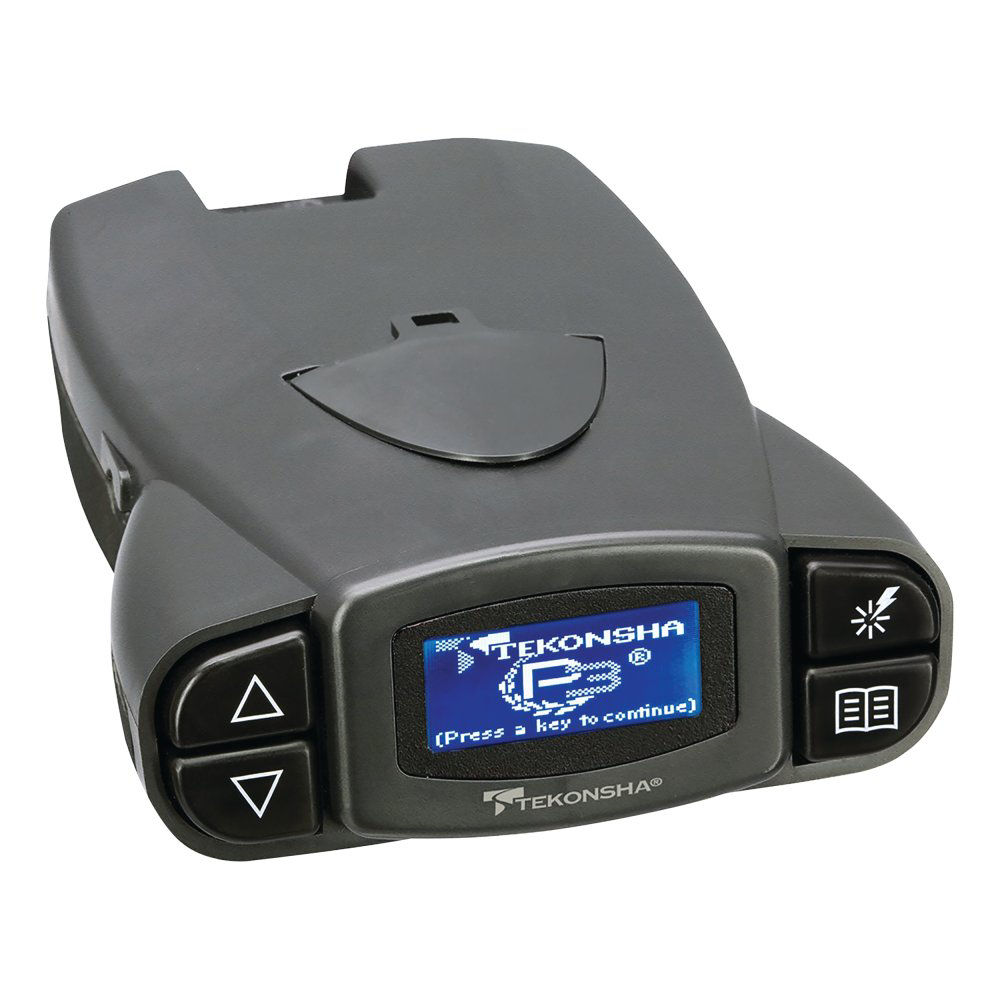

Tekonsha® In-Cab Tow Vehicle Proportional Prodigy P3® Brake Control Device for 1-4 Axle System
SKU: 90195
|
Reference Number: 416636
Brand: Tekonsha
CA$ 267.70
Business Customers can login to:
- See account pricing and available inventory
- Manage account invoices
Product Features
- • 1-4 axle trailers
• Distinct, easy to see LCD display with multiple color and contrast options
• User can customize to choose English, French or Spanish display
• Allows the user to switch between Electric and Hydraulic brakes
• Highly advanced, easy-to-understand, roadside diagnostics
• Easy access, "Up-Front' controls
• The original "Boost" feature allows for different levels of customized braking
• Compact, dash-hugging design
• Quick disconnect for easy storage; convenient storage pouch included
• Limited lifetime warranty
• NEW - 5 storable setting options for multiple trailers, same trailer different loads or even preferences for multiple drivers
••P3; the industry's most advanced electric trailer brake control. A true proportional braking system, P3 has several added features, making it the new standard for electric trailer brake controls.
• "Up-Front" controls provide easy access to all P3 features
• Easy to understand diagnostics show output current, battery/brake/output voltage
• A "flashing red" warning system alerts user to "No Trailer Brake" situations
• Integrated Plug & Play port for 2-plug adapters
• Limited Lifetime Warranty
Alternate Item Numbers
20-205, 39526, 48-90195, 64-39526, 6500052, 74-90195, L34-90195, P3, T90195
Details
| Brake Type | Brake Controller |
|---|---|
| Brake Control Connection | Plug & Play |
| Brake Control Type | Proportional |
| Number of Axles | 1-4 |
| Brake Control Leveling | Automatic |
| Brake Mounts To | In-Cab Tow Vehicle |
| Volts | 12 Volts |
| Wire Conductors | 4 |
| Wire Color | Black|Blue|Red|White |
| Plug Size | 4-Way |
| Brake Controller Mounting | Clip, Bracket, Pocket Mount |
| Brake Controller Mounting Location | Under or On Dash |
| Brake Controller Use | Tow Vehilces with Start-Stop Technology should select Proportional Brake Control to Prevent Excessive Battery Consumption. |
| Brake Controller Mounting Angle | Zero to 360° Angle Nose Capable |
| Plug Color | Black |
| Plug Shape | 4 Pin Rectangular |
| Brake Control Special Features | 5 storable setting options are included for pulling different trailers or preferences of multiple drivers |
| Capability Features | Manual Braking Override Control Capable |
| Electrical Connection Application | Electric Brake or Electric-Over-Hydraulic Trailer Brake Controller |
| Electrical Connection Type | Brake Control |
| Plug Connection Type | Male |
| Plug Pigtail Ends | Plug to Controller |
| Technology | Front-facing color LED shows settings, real-time diagnostics, and alert |
Shipping Info
| Package Weight | 1.7 Lbs |
|---|
Limited Lifetime Warranty
