Parts, Kits & Accessories for Horse Trailers
Outfit, maintain, or upgrade your horse trailer with axles, brakes, hubs/drums, doors & ventilation, couplers, jacks, suspension, lighting, tires & wheels, electrical, and security.
Fast shipping
OEM-trusted brands
Tech resources
Shop Popular Categories
Axle Assemblies
Horse Trailer Body Components
Coming Soon!
Dexter Door Form
Trailer Fenders
Trailer Fenders
Ventilation
Ventilation
Cam Locks
Cam Locks

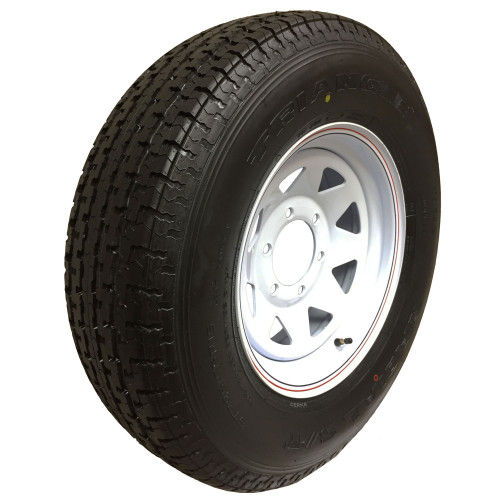

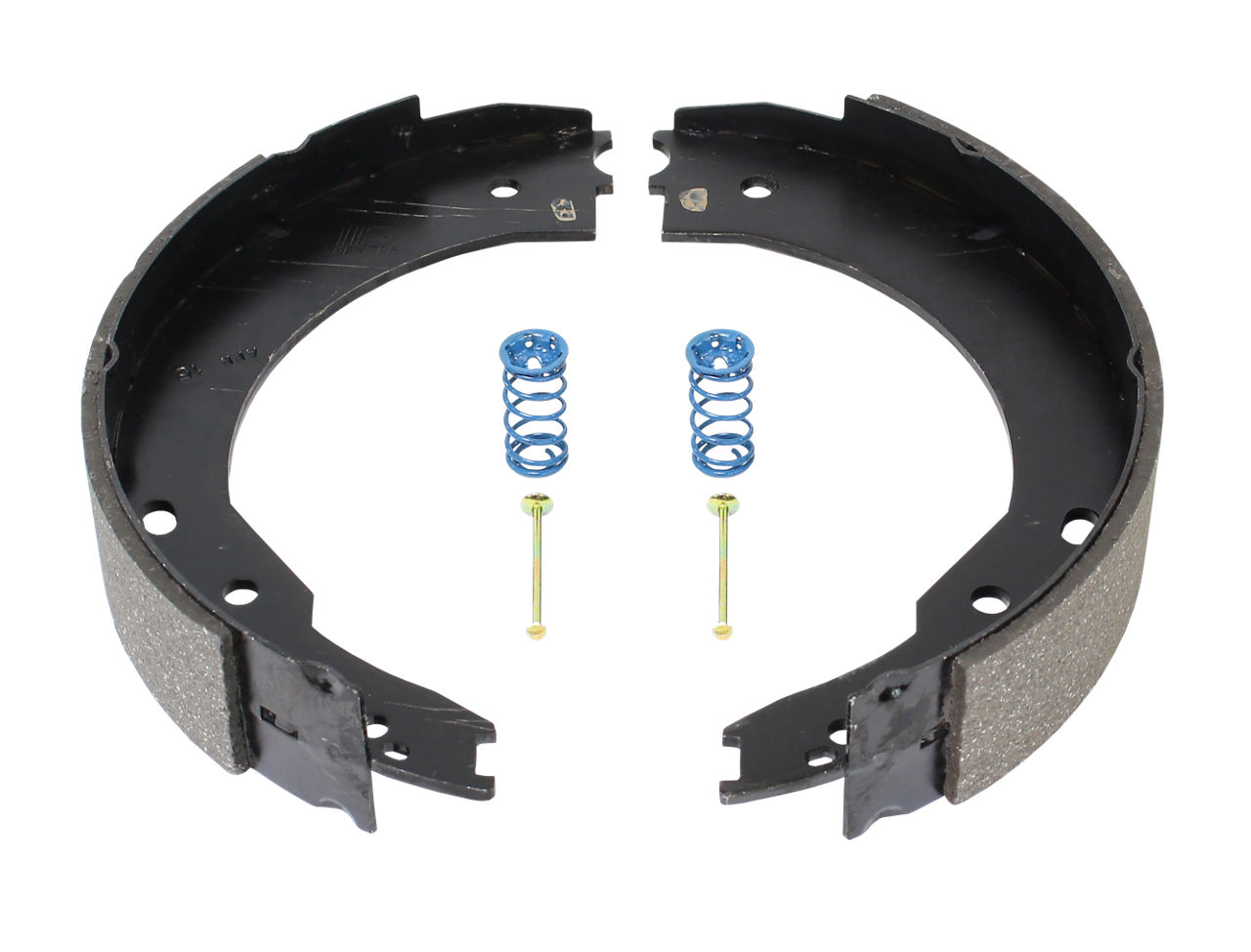

Horse Trailer Axle Components

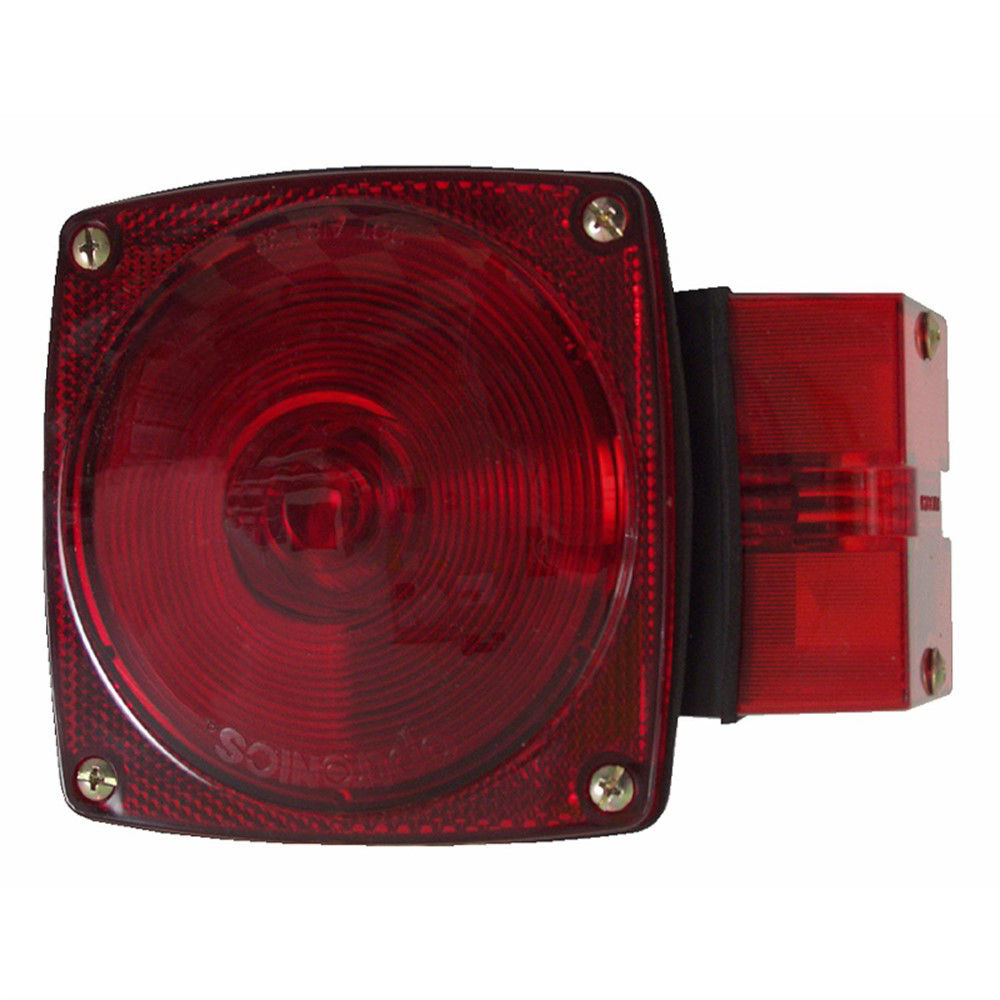

Horse Trailer Electrical
Horse Trailer Chains & Hardware
Horse Trailer Security & Locks
Horse & Livestock Trailers — Overview
Dexter’s portfolio supports safe, comfortable transport for horses and livestock with engineered axles, braking, suspension, doors/vents, lighting, and hardware designed for frequent wash-downs and rugged use.
From leaf-spring and torsion set-ups to electric drum brakes and hub-drum kits, you can match parts to your GVWR and stall configuration while improving ventilation, loading, and animal safety.
Common Applications
2–4 horse bumper-pull and gooseneck trailers
Stock combo and slant-load configurations
Tack room doors, drop-feed windows & roof vents
Ranch, show, and emergency transport use
Axle Sizing for Horse Trailers
Confirm GVWR and stall count (animals + tack)
Match hub-face (HF) and spring-center (SC) dims
Choose compatible hubs/drums, brakes & wheels
Ventilation & Lighting
Use roof vents & drop-feed windows for airflow
LED lighting improves visibility and durability
Seal wiring with heat-shrink; protect with loom
Safety & Security
Test breakaway system; replace worn switches/pins
Inspect coupler/jack hardware before each trip
Use coupler, door, and wheel locks when parked
Horse Trailer FAQs
What is a Torsion Axle?
The torsion axle is designed as a completely self-contained axle and suspension system. This trailing arm-type torsion axle employs natural rubber cords supporting heat-treated inner bars of solid steel. Press-fitted and welded to the ends of these independently floating bars are the steel torsion arm/spindle assemblies. These arms can be specified to a range of starting angles, which allow the designer to tailor the running height of the vehicle. Dexter can provide you with all the Torsion products and options you and your customers need.
What is a Tube Axle?

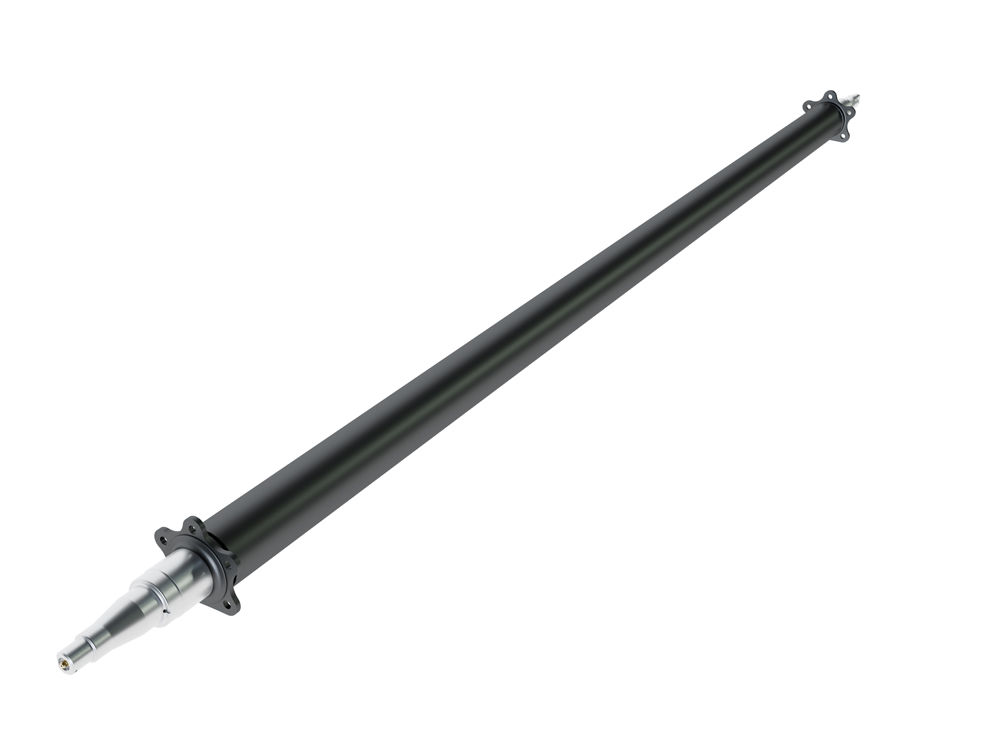

Leaf Spring axles utilize steel spindles welded to tubing to form an axle beam. Depending on the capacity rating of the axle, spindles are usually available in either a straight or drop design to help designers establish the desired frame height or ground clearance. Leaf springs are attached to the axle using U-bolts and can be positioned either under or over the tube. Use under-mounted springs (underslung) to lower the frame height and over-mounted springs (overslung) to raise the frame. The designer can choose stamped steel hangers of varying heights to allow additional control of the vehicle height. Dexter has all the products and attachment accessories you need for leaf spring axles.
What are the Types of Leaf Springs?
There are two basic types of springs to choose from: Double Eye or Slipper Springs. Double Eye Springs are used with the shackle-type suspensions. Slipper Springs are the heavy-duty springs used with slipper-type suspensions. Complete sets of springs and U-Bolt kits can be ordered with axles.
How do you Determine Bolt Pattern?
To determine the bolt circle on hubs with an even number of studs, measure center-to-center on studs directly across from each other on the diameter. Example: 8 on 6 1/2 would mean 8 bolt holes with 6 1/2" center-to-center diameter. On hubs with an odd number of studs, measure any stud center to the point halfway between studs on the diameter. Example: 5 on 4 1/2 would mean 5 bolt holes with 4 1/2" measure to a point halfway between the opposite studs. Another way to measure the odd number bolt pattern is by measuring the center of a stud to the center of the next stud.
How do you tell the difference between left and right-hand brakes?

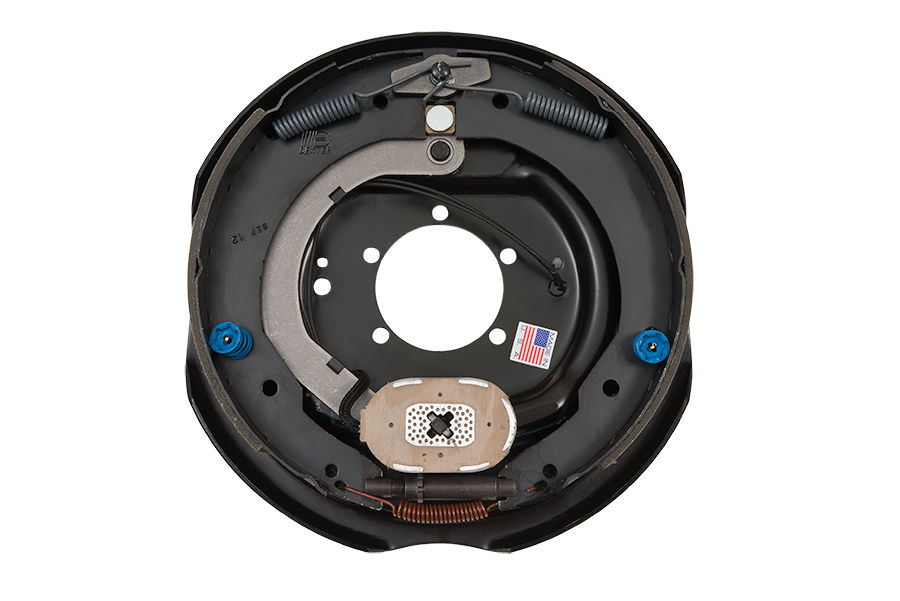

To determine the right- or left-side electric brake assembly, position the brake with the magnet at the bottom. On electric brakes, the actuating arm will always curve from the pivot pin to the magnet, toward the left for left-hand brakes and toward the right for right-hand brakes. To determine the right- or left-side hydraulic brake assembly, position the brake with the wheel cylinder at the top. On 10" and 12" brakes the input port will be at the rear of the brake. On all sizes of brakes the primary (shorter) brake shoe will be to the front of the brake.
